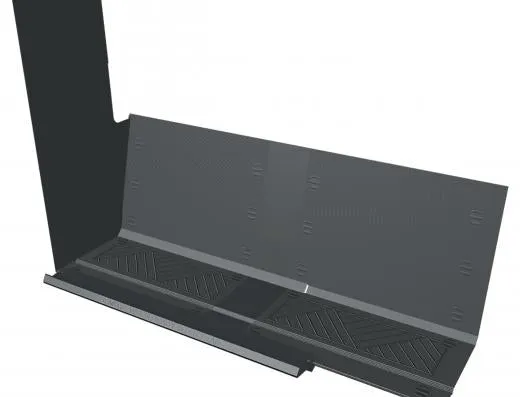

Manthorpe RIght Intermediate Short Blockwork / Stonework Tray GW291SBS

Manthorpe RIght Intermediate Short Blockwork / Stonework Tray GW291SBS

$ 47.36

$ 61.57

Save: $

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

The GW291-SBS right hand Intermediate Tray suits larger course heights typically 150mm, 225mm in either stonework or blockwork and has an upstand at one end only. This is so that the water can run out of the tray down the cavity tray system. The flexible perpend protector attached to the tray prevents driving rain penetrating the outer wall and tracking across the masonry. The tray has a unique front mortar clip that can be removed at any time once the mortar has set leaving a 25mm deep aperture into which the lead is inserted into and secured with lead wedges. The GW291-SBS right hand Intermediate Tray can also be supplied with short or long lead securely attached with staples in either code 4, code 5 (special order) lead or a lead replacement.

  • Stepped trays for pitched abutments
  • Adjustable stop end suits 150mm and 225mm coursing
  • 448mm long tray suitable for details with a steeper pitch
  • Removable mortar clip for quick and simple lead installation
  • Preformed tray holds itself rigid within the wall cavity

      Specs

      448mm length
      Stepped
      150mm (Stonework)225mm (Blockwork)
      Right
      102.5mm
      25˚ - 50˚ (150mm coursing)35˚ - 50˚ (225mm coursing)
      Polypropylene
      Injection Moulded
      Yes



      Instructions
