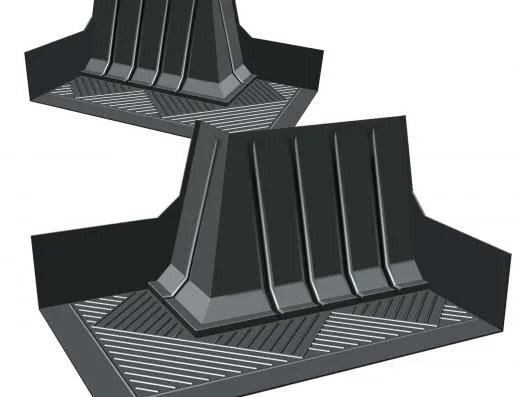

The GW292CC-BS Corner Catchment Tray is suitable for larger coursing heights typically 150mm, 225mm in either stonework or blockwork.

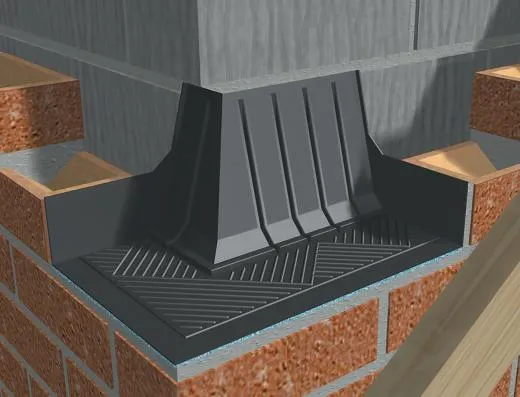

It is designed for situations where an abutment ends at a corner to shield the corner from water entry, and where restricted space prohibits the fitting of a standard catchment tray.
The tray has upstands at both ends of the tray ensure that the water which runs down from the trays above is collected and safely diverted out of the wall.
The flexible perpend protector attached to the tray prevents driving rain from penetrating the outer wall and tracking across the masonry.
A G950 Weep Vent must be used in conjunction with this tray to drain the collected water away.
The tray has a unique front mortar clip that can be removed at any time once the mortar has set leaving a 25mm deep aperture into which the lead is inserted and secured with lead wedges.
The GW292CC-BS Catchment Tray can be supplied with short or long lead stapled and sealed to the tray in either code 4, code 5 (special order) lead or a lead replacement.
