Manthorpe Left Intermediate Long Blockwork / Stonework Tray GW292LBS

Manthorpe Left Intermediate Long Blockwork / Stonework Tray GW292LBS

$ 8.38

$ 0.00

Save: $

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

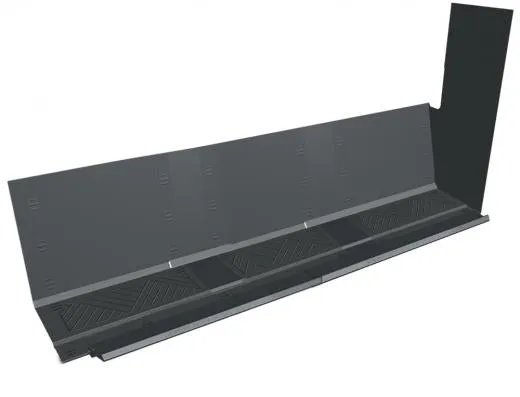

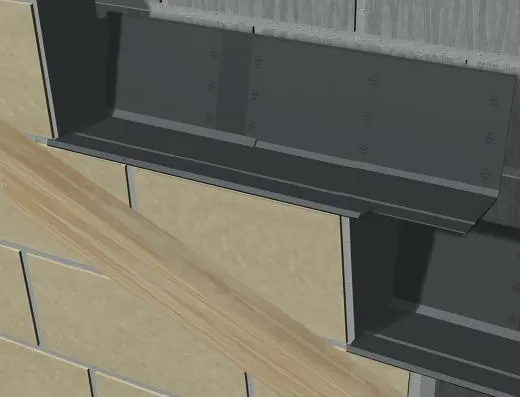

The GW292-LBS left hand Long Block Intermediate Tray suits low pitches in typically 150mm, 225mm coursing in either stonework or blockwork and has an upstand at one end only. This is so that the water can run out of the tray down the cavity tray system. The flexible perpend protector attached to the tray prevents driving rain penetrating the outer wall and tracking across the masonry. The tray has a unique front mortar clip that can be removed at any time once the mortar has set leaving a 25mm deep aperture into which the lead is inserted into and secured with lead wedges. The GW292-LBS left hand Long block Intermediate Tray can also be supplied with short or long lead securely attached with staples in either code 4, code 5 (special order) lead or a lead replacement.

  • Stepped trays for pitched abutments
  • Adjustable stop end suits 150mm and 225mm coursing
  • 814mm long tray suitable for details with a steeper pitch
  • Removable mortar clip for quick and simple lead installation
  • Preformed tray holds itself rigid within the wall cavity


        Specs

        814mm length
        Stepped
        150mm (Stonework) & 225mm (Blockwork)
        Left
        102.5mm
        12˚ - 24˚ (150mm coursing) or 17.5˚ - 34˚ (225mm coursing)
        Polypropylene
        Injection Moulded
        Yes



        Instructions
