[additional]

Included:

• Flange not included
• Drain Channel
• Railing Sliders
• Grate
• Removable Grate
• Grate End-Cap
• Screws, SFBMBOU, Hair Strainer, Key, Level, Wedges, Stainless Steel Blade
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Installation Instruction (.PDF)

[/additional]

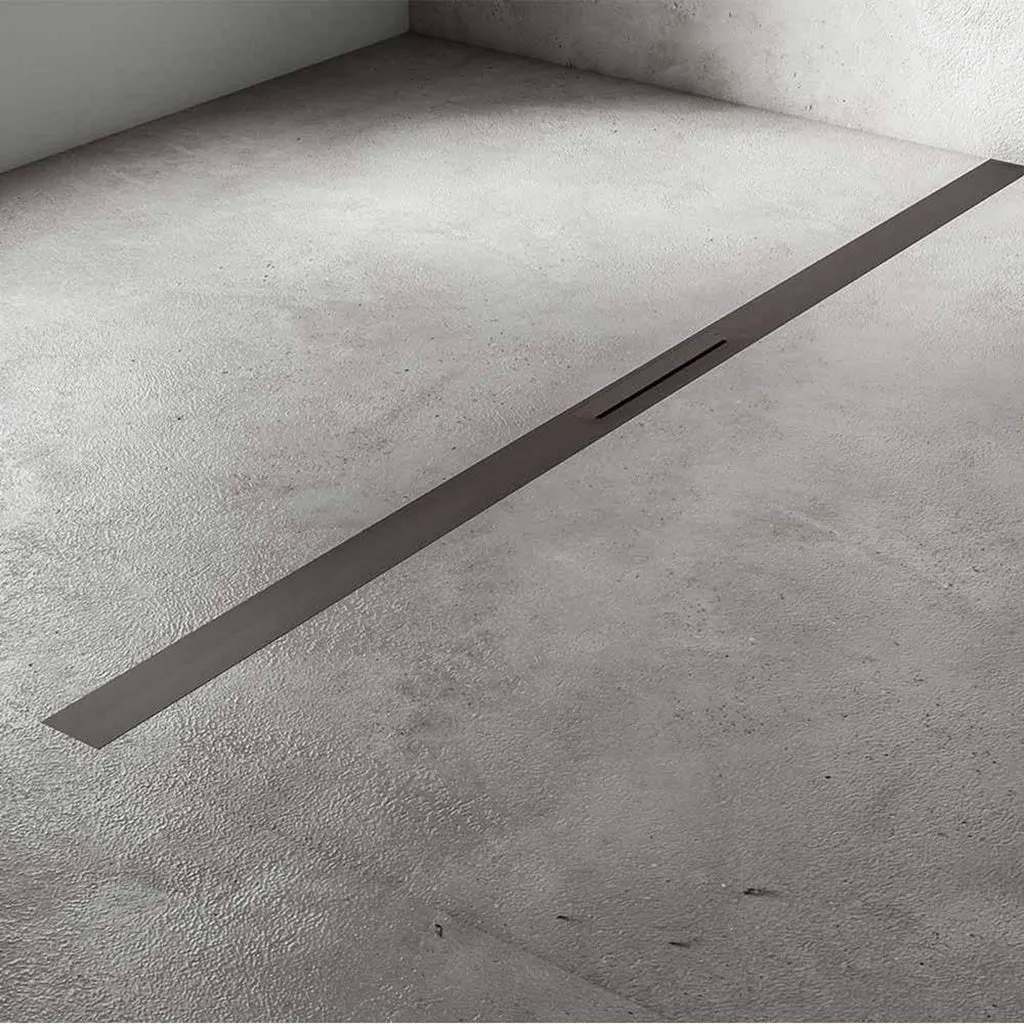

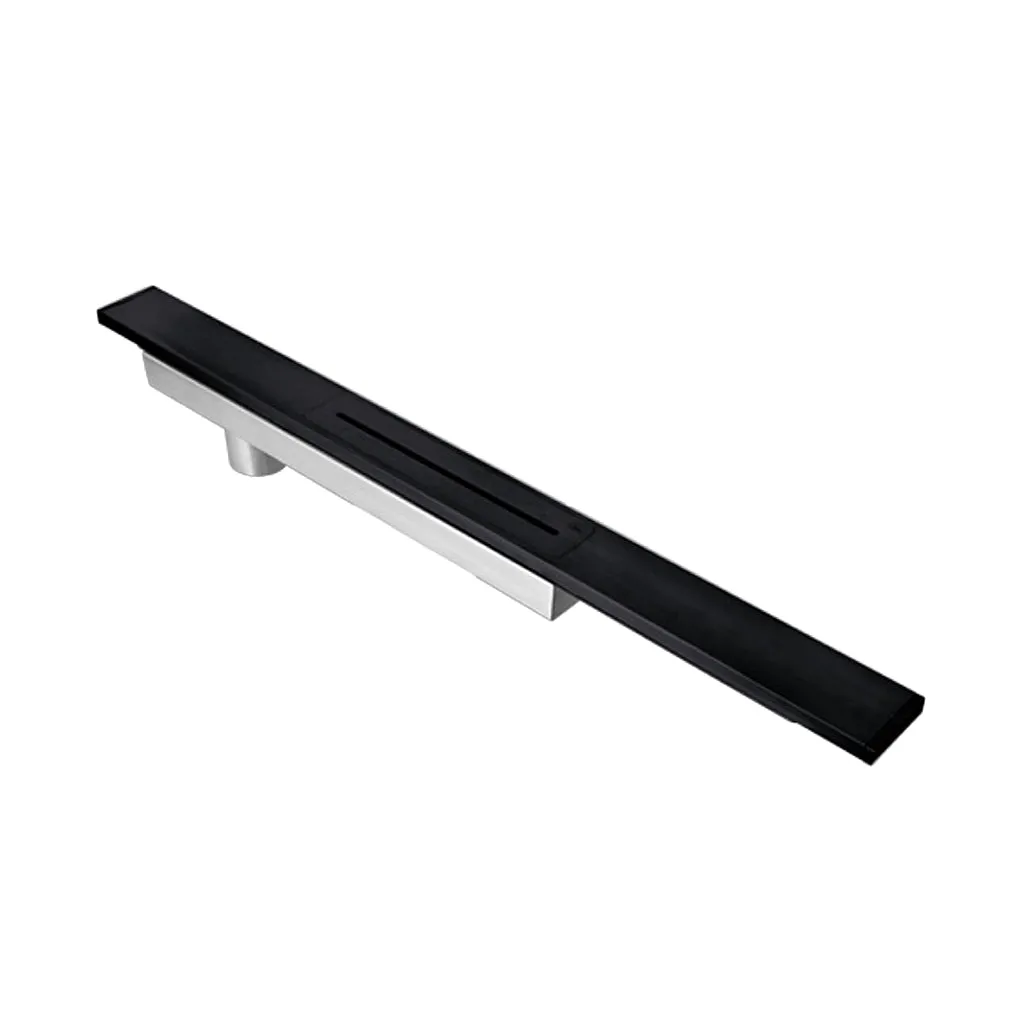

Supreme is a unique linear shower drain that solves one of the biggest problems facing installers and plumbers in construction and remodeling, eliminating the need to relocate existing plumbing when the water outlet is located a few inches off-center.This award winning product offers an independent base that houses an internal rail system which enables the grate to be in a different position than the base and the outlet. Supreme was designed with functionality and aesthetics being the primary principles in mind, creating a minimal, yet refined shower drain with a straightforward installation.

Features:

• Flexibility: Supreme’s superior design provides a flexible 8” range from the center of the shower, allowing you to center your drain without moving the existing pipe.
• Base: houses an internal rail system which enables the grate to be in a different position than the base and the outlet allowing you to center your drain without moving the existing pipe.
• Outlet: Drain base has an offset 2” outlet. This feature allows you to rotate the base to accommodate a left or right position and the sliders adjust to connect the grate in a different position than the outlet.
• Application: Indoor and outdoor showers.
• Material: Stainless Steel
• Finish/Color: Black

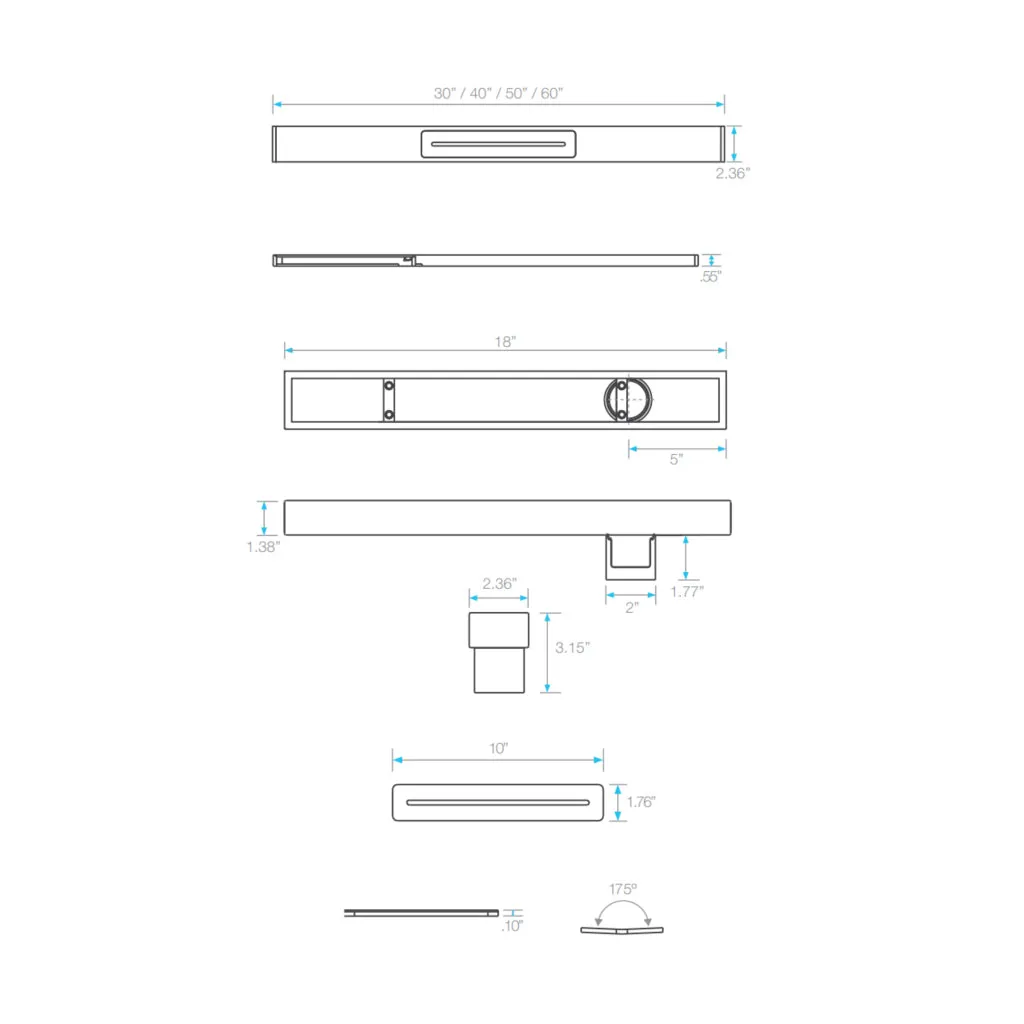

• Dimensions: W: 50" * H: 3,15" * D: 2,36"
• Weight: 8.9 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• ADA Certified: Yes
• Easy Installation: Yes
